FIREPROVED Solutions

Mechanical Support Systems is a local expert in fire-rated cable containment solutions.

‍

MSS FIREPROVED is a fire-rated product line within Mechanical Support System’s range of cable containment solutions. FIREPROVED cable containment systems are designed & manufactured locally and meet the requirements of AS/NZS 3013:2005 & NZBC.

‍

What does it mean to be a fire-rated cable containment system?

It means such a system has been tested as AS/NZS 3013:2005 Appendix C prescribes. This Appendix sets out a test method to determine the suitability of cable containment systems and fixing for supporting elements of wiring systems under fire conditions.

Specimens of cable containment and fixings are mechanically loaded and placed in a furnace to determine the suitability of a cable containment system set up to support wiring system elements under fire conditions. It is tested as per AS1530.4.

A testing specimen is considered to pass the certification testing if:

  • It succeeds in supporting its load during the test
  • Any part of the support, whether it hasn’t deflected or deflected by less than 100mm from its position at the start of the test
  • Any fixing has stayed intact into the specimen mounting slab.

The test continues till the moment 120 min has elapsed.

LEADING PROJECTS NATIONWIDE

Who we've helped

No items found.
Our Case Studies

MSS FIREPROVED SYSTEMS

Download BRANZ Test Certificate

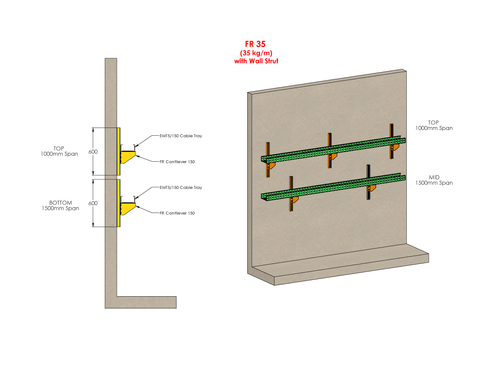

(B) MSS FIREPROVED Cable Tray FR176/GS/35‍

176mm wide X 84mm high x 1,200mm long an EMT5/150 cable tray supportedby three cantilever brackets; max load - 35 kg/m (with wall strut).

See all
Download Fire TS Lab Test Cert 1Download Fire TS Lab Test Cert 2
Download BRANZ Test Certificate

(A) MSS FIREPROVED Cable Tray FR150/SS/15‍

Measuring 150mm wide x 84mm high x 1300mm long a 316S/S cable tray, supportedby two cantilevers; max load – 15kg/m.

See All

Featured products

EMT3 Cable Tray
view
All products

Download a catalogue

see all catalogues
Supports, Fasteners & Consumables
Download
Metal Framing
Download
Cable Containment
Download

Our resources

Catalogues
At MSS we’re proud to offer one of the largest range of cable containment solutions available in New Zealand. To help you navigate our wide range of solutions, we’ve created five distinct catalogues to showcase the systems we design, manufacture and install. Simply click on the links below to view a catalogue.
Read more
Installation Videos
We committed to quality product installation, whether we’re taking care of it, or you’re doing it yourself. To make sure you have all the support you need, we’ve created these handy cable containment installation videos to guide you through some of the trickier parts of the process.
Read more

MSS testing program is an ongoing process guided by the market fire resistance requirements. The team is open to project-based collaborations if any cable containment system and fixing require a fire rating. Our technical team works closely with project management to deliver expectations, including fire resistance compliance.
